plotly.js(小提琴图)

plotly.js 介绍

plotly.js 中有绘制小提琴图的模块, 具体配置查看手册。

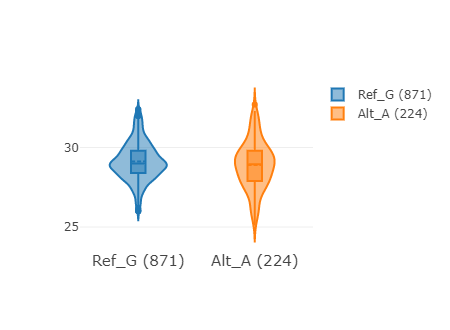

violin plot 示例

JavaScript

<script type="text/javascript" charset="utf8" src="http://code.jquery.com/jquery-1.10.2.min.js"></script>
<script type="text/javascript" charset="utf8" src="https://cdn.plot.ly/plotly-2.4.2.min.js"></script>

<div id="plotchart" style="width:500px;height:400px;margin-left:310px;margin-top:50px"></div>
<script>
$(document).ready(function() {
  draw()
})
function draw() {
  var x = ["Ref_G", "Ref_G", "Ref_G", "Ref_G", "Ref_G", "Ref_G", "Alt_A", "Alt_A", "Alt_A", "Alt_A", "Alt_A", "Alt_A"]
  var y = [29.9, 29.9, 27.3, 29.7, 29.8, 27.8, 29.4, 29.2, 28.4, 28.3, 28.5, 27.8]
  var data = [{
    type: 'violin',
    x: x,
    y: y,
    points: 'none',
    box: {
      visible: true
    },
    line: {
      color: 'green',
    },
    meanline: {
      visible: true
    },
    transforms: [{
      type: 'groupby',
      groups: x,
      styles: [{
        target: 'Ref_G',
        value: {
          line: {
            color: '#1F77B4'
          }
        }
      },
      {
        target: 'Alt_A',
        value: {
          line: {
            color: '#FF7F0e'
          }
        }
      },
      ]
    }]
  }]
  var layout = {
    height: 330,
    width: 450,
    margin: {
      t: 80
    },
    title: {
      text: 'violin plot'
    },
    yaxis: {
      zeroline: false
    },
    /* legend: {
        "orientation": "h"
    } */
  }
  Plotly.newPlot('plotchart', data, layout);
}
</script>

Vue

<!-- npm i --save plotly.js-dist-min -->
<template>
  <div id="chartDiv"></div>
</template>
<script>
import Plotly from 'plotly.js-dist-min'
export default {
  name: 'violin',
  data() {
    return {
      colors1: ['#1F77B4', '#FF7F0e', '#2CA02C', '#D62728', '#9467BD'],
      colors2: ['#003300', '#669933', '#cccc99', '#666600', '#CCCC66'],
      chartTitle: 'violin plot',
      fontsize: 15,
      color_style: 'colors1',
      chartData: {
        x: ["Ref_G", "Ref_G", "Ref_G", "Ref_G", "Ref_G", "Ref_G", "Alt_A", "Alt_A", "Alt_A", "Alt_A", "Alt_A", "Alt_A"],
        y: [29.9, 29.9, 27.3, 29.7, 29.8, 27.8, 29.4, 29.2, 28.4, 28.3, 28.5, 27.8]
      }
    }
  },
  mounted: function() {
    this.draw_chart()
  },
  methods: {
    draw_chart() {
      var that = this
      var x = that.chartData.x
      var y = that.chartData.y
      var x_type = Array.from(new Set(x))
      var styles = new Array()
      for (let i = 0; i < x_type.length; i++) {
        styles.push({
          target: x_type[i],
          value: { line: { color: that[that.color_style][i] } }
        })
      }
      var width_pic = x_type.length * 250 > 1000 ? 1000 : x_type.length * 250
      width_pic = width_pic < 350 ? 350 : width_pic
      var title = this.chartTitle
      var data = [
        {
          type: 'violin',
          x: x,
          y: y,
          points: 'none',
          box: {
            visible: true
          },
          line: {
            color: 'green'
          },
          meanline: {
            visible: true
          },
          transforms: [
            {
              type: 'groupby',
              groups: x,
              styles: styles
            }
          ]
        }
      ]
      var layout = {
        height: 330,
        width: width_pic,
        margin: {
          t: 80
        },
        title: {
          text: title
        },
        xaxis: {
          tickfont: {
            size: that.fontsize
          }
        },
        yaxis: {
          zeroline: false
        }
      }
      Plotly.newPlot('chartDiv', data, layout)
    }
  }
}
</script>
