Highcharts(基因结构图)
Highcharts介绍#
根据Highcharts中的子弹图绘制基因结构图。

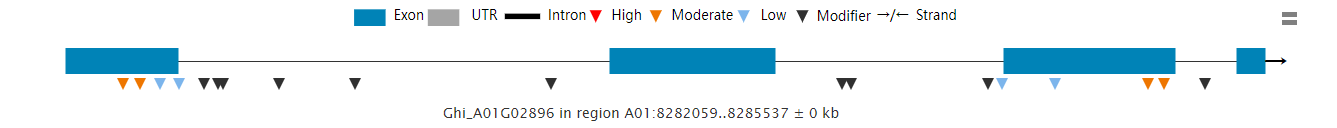

绘制基因结构图#
<script type="text/javascript" charset="utf8" src="http://code.jquery.com/jquery-1.10.2.min.js"></script>
<script type="text/javascript" charset="utf8" src="https://cdn.highcharts.com.cn/highcharts/highcharts.js"></script>
<div style="width:1350px;">
<div id="bullet" style="height:45px;width:1300px"></div>
<div id="container2" style="height:50px;width:1300px"></div>
</div>
<script>
$(document).ready(function() {
draw()
})
function draw() {
//以下配置根据实际图形进行调整
//data 存储基因信息
var data = [
{
"from": 1,
"to": 657,
"color": "#0083B7",
"zIndex": 20,
"name": "CDS"
},
{
"from": 1926,
"to": 2012,
"color": "#0083B7",
"zIndex": 20,
"name": "CDS"
}
]
//scatter 存储snp信息
var scatter = [
{
"name": "pos:143777||ref/alt:C/T(0.96/0.04)||type:missense_variant MODERATE",
"x": 196,
"y": 5,
"chengdu": "MODERATE",
"color": "#EE7600"
},
{
"name": "pos:144199||ref/alt:T/G(0.91/0.09)||type:synonymous_variant LOW",
"x": 618,
"y": 5,
"chengdu": "LOW"
},
{
"name": "pos:144767||ref/alt:C/T(0.90/0.10)||type:downstream_gene_variant MODIFIER",
"x": 1186,
"y": 5,
"chengdu": "MODIFIER",
"color": "#303030\t"
},
{
"name": "pos:144875||ref/alt:G/GGACTATCACTCTGACCC(0.97/0.03)||type:downstream_gene_variant MODIFIER",
"x": 1294,
"y": 5,
"chengdu": "MODIFIER",
"color": "#303030\t"
},
{
"name": "pos:145290||ref/alt:A/C(0.83/0.17)||type:downstream_gene_variant MODIFIER",
"x": 1709,
"y": 5,
"chengdu": "MODIFIER",
"color": "#303030\t"
},
{
"name": "pos:145538||ref/alt:C/G(0.91/0.09)||type:missense_variant MODERATE",
"x": 1957,
"y": 5,
"chengdu": "MODERATE",
"color": "#EE7600"
}
]
//长度
var len = 2012
//基因方向
var strand = '+'
//添加基因方向
var from_min = Math.min.apply(Math, data.map(item => { return item.from }))
var to_max = Math.max.apply(Math, data.map(item => { return item.to }))
if (strand == "+") {
var plot_num = to_max;
var plot_text = '→';
var x = 0;
var y = 22;
}
if (strand == "-") {
var plot_num = from_min;
var plot_text = '←';
var x = -25;
var y = 22;
}
Highcharts.Renderer.prototype.symbols.line = function(x, y, width, height) {
return ['M', x, y + width / 2, 'L', x + height, y + width / 2];
};
Highcharts.setOptions({
chart: {
type: 'bar',
width: 1300,
},
credits: {
enabled: false
},
exporting: {
enabled: false
},
title: {
text: ''
},
xAxis: {
tickLength: 0,
lineColor: '#0083B7',
lineWidth: 0,
labels: {
style: {
fontWeight: 'bold'
}
}
},
yAxis: {
min: 0,
minPadding: 0,
maxPadding: 0,
tickColor: '#ccc',
tickWidth: 1,
tickLength: 3,
gridLineWidth: 0,
endOnTick: true,
title: {
text: ''
},
labels: {
y: 10,
style: {
fontSize: '8px'
},
}
},
plotOptions: {
bar: {
color: '#333333',
shadow: false,
borderWidth: 0,
},
}
});
var chart1 = new Highcharts.Chart({
chart: {
renderTo: 'bullet',
width: 1300,
marginLeft: 50,
marginRight: 50,
marginTop: 19,
marginBottom: -1
},
tooltip: {
enabled: false
},
legend: {
enabled: false
},
xAxis: {
text: {
title: ''
},
visible: false,
labels: {
enabled: false
},
},
yAxis: {
plotLines: [
{
value: plot_num,
width: 0,
color: 'black',
zIndex: 100,
label: {
rotation: 0,
align: 'bottom',
x: x,
y: y,
style: {
fontSize: '27px'
},
text: plot_text
}
},
],
labels: {
enabled: false
},
endOnTick: false,
plotBands: data,
},
series: [
{
"data": [
len
],
"pointWidth": 1,
"name": "Measure"
}
],
});
var chart2 = new Highcharts.Chart({
chart: {
renderTo: 'container2',
width: 1250,
marginBottom: 26,
marginTop: 10,
marginLeft: 50,
type: 'scatter',
zoomType: 'xy'
},
title: {
text: 'Ghi_A01G00036 in region A01:143582..145593 ± 0 kb',
y: 34,
style: {
fontSize: '14px'
}
},
credits: {
enabled: false
},
exporting: {
enabled: false
},
legend: {
enabled: false
},
xAxis: {
title: {
enabled: false,
text: ''
},
startOnTick: false,
endOnTick: false,
showLastLabel: true,
min: 1,
max: len,
visible: false,
},
yAxis: {
visible: false,
min: 4,
max: 5
},
plotOptions: {
scatter: {
marker: {
radius: 6,
symbol: 'triangle-down',
},
tooltip: {
headerFormat: '',
pointFormat: '{point.name}'
}
},
series: {
cursor: 'pointer',
point: {
events: {
click: function() {
//散点的点击事件
console.log(this.options.name)
}
}
}
}
},
series: [{
data: scatter
}
]
});
}
</script>
<!-- npm install highcharts --save -->
<template>
<div>
<div id="container1" style="height:45px;width:1300px"></div>
<div id="container2" style="height:50px;width:1250px"></div>
</div>
</template>
<script>
import Highcharts from 'highcharts'
export default {
name: 'geneStructure',
components: {},
data() {
return {
title: '"Glyma.08G367700 in region Chr08:47792490..47793777 ± 0kb"',
plotbands: [
{
from: 0,
to: 702,
name: '-',
color: '#C9C9C9',
zIndex: 20,
label: {
align: 'bottom',
x: -24,
y: 22,
style: { fontSize: '30px' },
text: '←'
}
},
{ from: 703, to: 889, name: '-', color: '#0083B7', zIndex: 20 },
{ from: 994, to: 1106, name: '-', color: '#0083B7', zIndex: 20 },
{ from: 1107, to: 1287, name: '-', color: '#C9C9C9', zIndex: 20 }
],
region_len: 1287,
scatterData: [
{
name:
'1: pos:47792721||ref/alt:C/T(0.39/0.61)||type:3_prime_UTR_variant MODIFIER',
x: 232,
y: 5,
chengdu: 'MODIFIER',
color: '#303030\t'
},
{
name:
'2: pos:47793019||ref/alt:C/T(0.39/0.61)||type:3_prime_UTR_variant MODIFIER',
x: 530,
y: 5,
chengdu: 'MODIFIER',
color: '#303030\t'
},
{
name:
'3: pos:47793093||ref/alt:G/GAA(0.39/0.61)||type:3_prime_UTR_variant MODIFIER',
x: 604,
y: 5,
chengdu: 'MODIFIER',
color: '#303030\t'
}
]
}
},
mounted() {
this.draw()
},
methods: {
draw() {
var that = this
Highcharts.setOptions({
chart: {
width: 1300,
type: 'bar'
},
title: {
text: null
},
legend: {
enabled: false
},
xAxis: {
tickLength: 0,
lineColor: '#FFFFFF',
lineWidth: 0,
labels: {
style: { fontWeight: 'bold' }
}
},
yAxis: {
min: 0,
minPadding: 0,
maxPadding: 0,
tickColor: '#FFFFFF',
tickWidth: 1,
tickLength: 3,
gridLineWidth: 0,
endOnTick: true,
title: { text: '' },
labels: {
y: 10,
style: {
fontSize: '8px'
}
}
},
plotOptions: {
bar: {
color: '#333333',
shadow: false,
borderWidth: 0
}
},
credits: {
enabled: false
},
exporting: {
enabled: false
}
})
Highcharts.chart('container1', {
chart: {
marginBottom: -1,
marginLeft: 50,
marginRight: 50,
marginTop: 19,
width: 1300
},
tooltip: {
enabled: false
},
xAxis: {
visible: false
},
yAxis: {
endOnTick: false,
labels: {
enabled: false
},
plotBands: this.plotbands,
plotLines: [
{
value: this.region_len,
width: 0,
color: 'black',
zIndex: 100
}
],
title: null
},
series: [
{
data: [this.region_len],
pointWidth: 1
}
]
})
new Highcharts.Chart('container2', {
chart: {
width: 1250,
marginBottom: 26,
marginTop: 10,
marginLeft: 50,
type: 'scatter',
zoomType: 'xy'
},
title: {
text: this.title,
y: 34,
style: {
fontSize: '14px'
}
},
credits: {
enabled: false
},
exporting: {
enabled: false
},
legend: {
enabled: false
},
xAxis: {
title: {
enabled: false,
text: ''
},
startOnTick: false,
endOnTick: false,
showLastLabel: true,
min: 0,
max: this.region_len - 1,
visible: false
},
yAxis: {
visible: false,
min: 4,
max: 5
},
plotOptions: {
scatter: {
marker: {
radius: 6,
symbol: 'triangle-down'
},
tooltip: {
headerFormat: '',
pointFormat: '{point.name}'
}
},
series: {
cursor: 'pointer',
point: {
events: {
click: function() {
console.log(this.options.name)
}
}
}
}
},
series: [
{
data: this.scatterData
}
]
})
}
}
}
</script>
