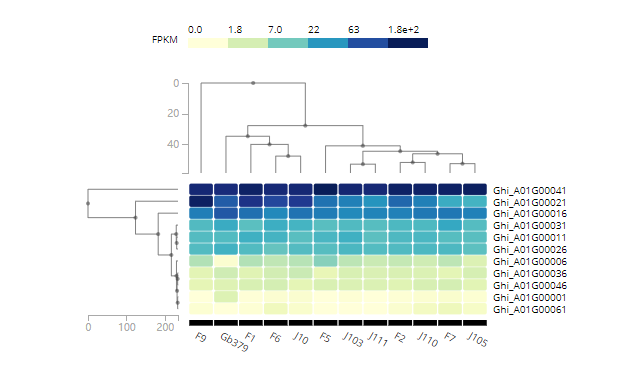

gtex-viz(带聚类树的热图)

GTEx官网: https://github.com/broadinstitute/gtex-viz

示例

JavaScript

<link rel="stylesheet" type="text/css" href="http://yanglab.hzau.edu.cn/gtex-viz/css/expressMap.css">
<script type="text/javascript" charset="utf8" src="http://code.jquery.com/jquery-1.10.2.min.js"></script>
<script type="text/javascript" charset="utf8" src="http://yanglab.hzau.edu.cn/gtex-viz/build/js/gtex-viz.bundle.min.js"></script>

<div id="userDendroHeatmap"></div>

<script>
  $(document).ready(function() {
    //载入数据包括行与列的nwk格式的聚类树以及heatmap值
    var data = {
      rowTree: "(((TP53:0.17,SLK:0.17):1.18,NDRG4:1.34):1.33,ACTN3:2.67);",
      colTree: "(((Adipose Visceral Omentum:0.06,Adipose Subcutaneous:0.06):0.00,Bladder:0.06):0.16,Adrenal Gland:0.22);",
      heatmap: [
        {
          "y": "SLK",
          "value": 35.505,
          "x": "Adipose Subcutaneous",
          "unit": "TPM"
        },
        {
          "y": "SLK",
          "value": 29.28,
          "x": "Adipose Visceral Omentum",
          "unit": "TPM"
        },
        {
          "y": "SLK",
          "value": 17.405,
          "x": "Adrenal Gland",
          "unit": "TPM"
        },
        {
          "y": "SLK",
          "value": 53.29,
          "x": "Bladder",
          "unit": "TPM"
        },
        {
          "y": "NDRG4",
          "value": 12.035,
          "x": "Adipose Subcutaneous",
          "unit": "TPM"
        },
        {
          "y": "NDRG4",
          "value": 6.531000000000001,
          "x": "Adipose Visceral Omentum",
          "unit": "TPM"
        },
        {
          "y": "NDRG4",
          "value": 134.8,
          "x": "Adrenal Gland",
          "unit": "TPM"
        },
        {
          "y": "NDRG4",
          "value": 7.1160000000000005,
          "x": "Bladder",
          "unit": "TPM"
        },
        {
          "y": "TP53",
          "value": 29.935,
          "x": "Adipose Subcutaneous",
          "unit": "TPM"
        },
        {
          "y": "TP53",
          "value": 23.55,
          "x": "Adipose Visceral Omentum",
          "unit": "TPM"
        },
        {
          "y": "TP53",
          "value": 18.515,
          "x": "Adrenal Gland",
          "unit": "TPM"
        },
        {
          "y": "TP53",
          "value": 40.51,
          "x": "Bladder",
          "unit": "TPM"
        },
        {
          "y": "ACTN3",
          "value": 0.33145,
          "x": "Adipose Subcutaneous",
          "unit": "TPM"
        },
        {
          "y": "ACTN3",
          "value": 0.3317,
          "x": "Adipose Visceral Omentum",
          "unit": "TPM"
        },
        {
          "y": "ACTN3",
          "value": 0.100005,
          "x": "Adrenal Gland",
          "unit": "TPM"
        },
        {
          "y": "ACTN3",
          "value": 0.48100000000000004,
          "x": "Bladder",
          "unit": "TPM"
        }
      ]
    }

    var config = {
      id: 'userDendroHeatmap',
      data: data,
      useLog: true,
      logBase: 10,
      width: 600, // outer width
      height: 300, // outer height
      marginLeft: 20,
      marginRight: 40,
      marginTop: 50,
      marginBottom: 50,
      rowTreePanelWidth: 100,
      colTreePanelHeight: 100,
      colorScheme: "Blues",
      cornerRadius: 2,
      columnLabelHeight: 200,
      columnLabelAngle: 60,
      columnLabelPosAdjust: 10,
      rowLabelWidth: 200,
      legendSpace: 50
    };
    GTExViz.dendroHeatmap(config);
  })
</script>

Vue

Tip

以下示例中, gtex-viz.bundle.vue.min.js存放在public/js中, pop_exp.css、expressMap.css存放在public/css中。
其中, gtex-viz.bundle.vue.min.js文件使用http://yanglab.hzau.edu.cn/static/js/gtex-viz.bundle.vue.min.js。

<template>
  <div id="userDendroHeatmap"></div>
</template>

<script>
import { GTExViz } from '@/../public/js/gtex-viz.bundle.vue.min.js'
export default {
  name: 'example',
  components: {},
  data () {
    return {
      plotData: {
        rowTree: '(((TP53:0.17,SLK:0.17):1.18,NDRG4:1.34):1.33,ACTN3:2.67);',
        colTree:
          '(((Adipose Visceral Omentum:0.06,Adipose Subcutaneous:0.06):0.00,Bladder:0.06):0.16,Adrenal Gland:0.22);',
        heatmap: [
          {
            y: 'SLK',
            value: 35.505,
            x: 'Adipose Subcutaneous',
            unit: 'TPM'
          },
          {
            y: 'SLK',
            value: 29.28,
            x: 'Adipose Visceral Omentum',
            unit: 'TPM'
          },
          {
            y: 'SLK',
            value: 17.405,
            x: 'Adrenal Gland',
            unit: 'TPM'
          },
          {
            y: 'SLK',
            value: 53.29,
            x: 'Bladder',
            unit: 'TPM'
          },
          {
            y: 'NDRG4',
            value: 12.035,
            x: 'Adipose Subcutaneous',
            unit: 'TPM'
          },
          {
            y: 'NDRG4',
            value: 6.531000000000001,
            x: 'Adipose Visceral Omentum',
            unit: 'TPM'
          },
          {
            y: 'NDRG4',
            value: 134.8,
            x: 'Adrenal Gland',
            unit: 'TPM'
          },
          {
            y: 'NDRG4',
            value: 7.1160000000000005,
            x: 'Bladder',
            unit: 'TPM'
          },
          {
            y: 'TP53',
            value: 29.935,
            x: 'Adipose Subcutaneous',
            unit: 'TPM'
          },
          {
            y: 'TP53',
            value: 23.55,
            x: 'Adipose Visceral Omentum',
            unit: 'TPM'
          },
          {
            y: 'TP53',
            value: 18.515,
            x: 'Adrenal Gland',
            unit: 'TPM'
          },
          {
            y: 'TP53',
            value: 40.51,
            x: 'Bladder',
            unit: 'TPM'
          },
          {
            y: 'ACTN3',
            value: 0.33145,
            x: 'Adipose Subcutaneous',
            unit: 'TPM'
          },
          {
            y: 'ACTN3',
            value: 0.3317,
            x: 'Adipose Visceral Omentum',
            unit: 'TPM'
          },
          {
            y: 'ACTN3',
            value: 0.100005,
            x: 'Adrenal Gland',
            unit: 'TPM'
          },
          {
            y: 'ACTN3',
            value: 0.48100000000000004,
            x: 'Bladder',
            unit: 'TPM'
          }
        ]
      }
    }
  },
  mounted () {
    this.$nextTick(function () {
      this.draw()
    })
  },
  methods: {
    draw () {
      const config = {
        id: 'userDendroHeatmap',
        data: this.plotData,
        useLog: true,
        logBase: 10,
        width: 600,
        height: 300,
        marginLeft: 20,
        marginRight: 40,
        marginTop: 50,
        marginBottom: 50,
        rowTreePanelWidth: 100,
        colTreePanelHeight: 100,
        colorScheme: 'Blues',
        cornerRadius: 2,
        columnLabelHeight: 200,
        columnLabelAngle: 60,
        columnLabelPosAdjust: 10,
        rowLabelWidth: 200,
        legendSpace: 50
      }
      GTExViz.dendroHeatmap(config)
    }
  }
}
</script>

<style scoped>
/* 使用本页面到css文件的相对路径, 需自行调整 */
@import '../../../public/css/pop_exp.css';
@import '../../../public/css/expressMap.css';
</style>
