Cytoscape.js(网络图)

Cytoscape.js简介#

Cytoscape.js 可用来绘制各种网络图, 其中cola.js可以绘制gene与gene间的网络图。
API文档参考https://js.cytoscape.org/#getting-started

示例#

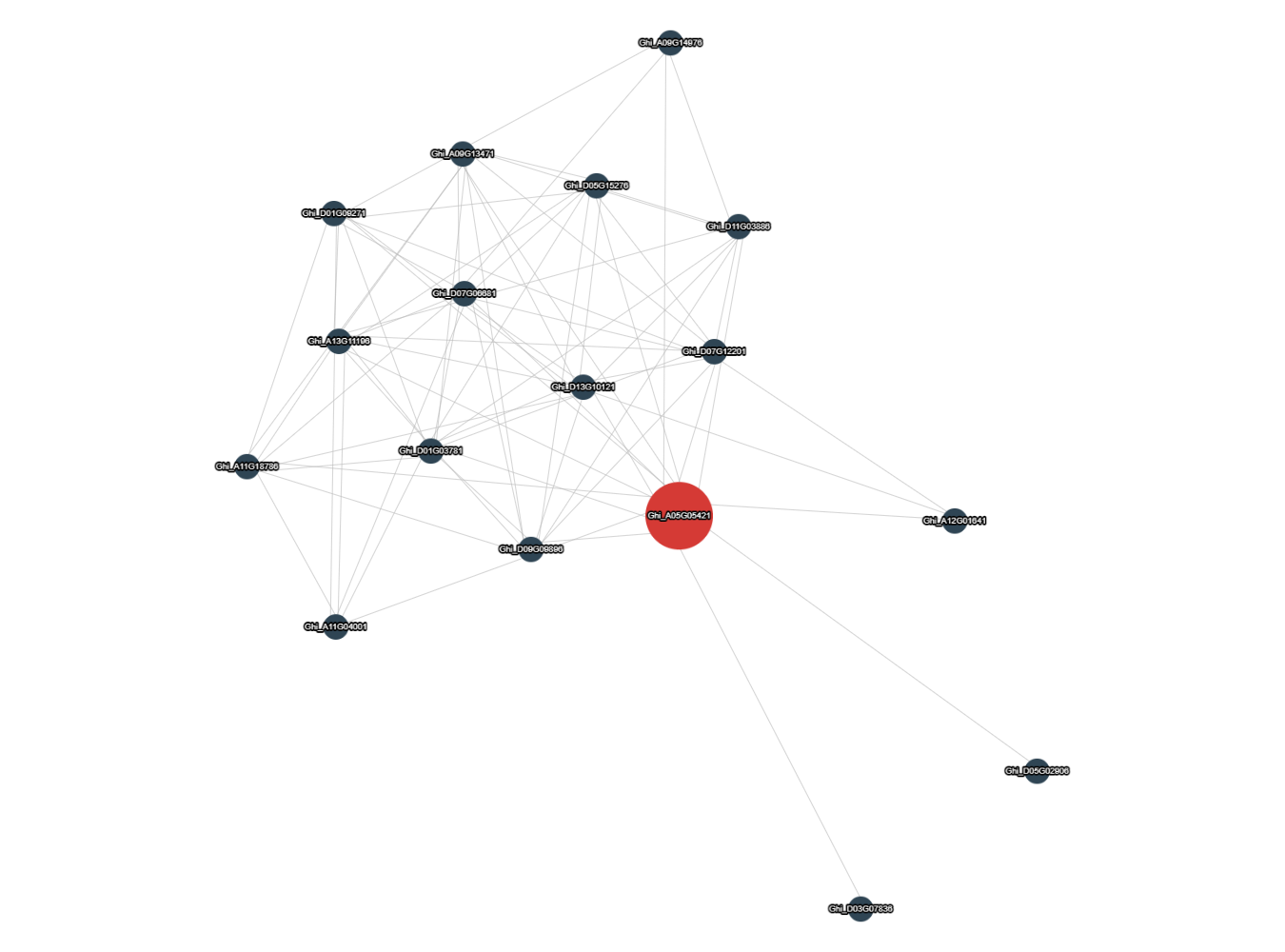

网络图

<script type="text/javascript" charset="utf8" src="http://code.jquery.com/jquery-1.10.2.min.js"></script>
<script type="text/javascript" charset="utf8" src="http://yanglab.hzau.edu.cn/static/js/cytoscape.min.js"></script>

<div style="width:1350px;height:1000px;" id="cy"></div>

<script>
  $(document).ready(function() {
    var data = [
      //核心点
      { "data": { "id": "Ghi_A05G05421", "name": "Ghi_A05G05421", "score": 0.1 }, "style": { "background-color": "#D53A35" } },
      //其余点
      { "data": { "id": "Ghi_A11G18786", "name": "Ghi_A11G18786", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_A13G11196", "name": "Ghi_A13G11196", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D03G07836", "name": "Ghi_D03G07836", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D05G15276", "name": "Ghi_D05G15276", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D11G03886", "name": "Ghi_D11G03886", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D13G10121", "name": "Ghi_D13G10121", "score": 0 }, "style": { "background-color": "#2F4554" } },
      //边
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_A11G18786", "weight": 0.9422 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_A13G11196", "weight": 0.9422 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D03G07836", "weight": 0.9409 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D05G15276", "weight": 0.9449 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D11G03886", "weight": 0.9477 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D13G10121", "weight": 0.9482 } },
      { "data": { "source": "Ghi_A11G18786", "target": "Ghi_A13G11196", "weight": 0.9638 } },
      { "data": { "source": "Ghi_A11G18786", "target": "Ghi_D13G10121", "weight": 0.9623 } },
      { "data": { "source": "Ghi_A13G11196", "target": "Ghi_D05G15276", "weight": 0.9558 } },
      { "data": { "source": "Ghi_A13G11196", "target": "Ghi_D13G10121", "weight": 0.9871 } },
      { "data": { "source": "Ghi_D05G15276", "target": "Ghi_D11G03886", "weight": 0.9537 } },
      { "data": { "source": "Ghi_D05G15276", "target": "Ghi_D13G10121", "weight": 0.9729 } }
    ]

    var cy = window.cy = cytoscape({
      container: document.getElementById('cy'),
      layout: {
        name: 'cose',
        idealEdgeLength: 100,
        nodeOverlap: 20,
        refresh: 20,
        fit: true,
        padding: 30,
        randomize: false,
        componentSpacing: 100,
        nodeRepulsion: 400000,
        edgeElasticity: 100,
        nestingFactor: 5,
        gravity: 80,
        numIter: 1000,
        initialTemp: 200,
        coolingFactor: 0.95,
        minTemp: 1.0
      },
      style: [{
        "selector": "core",
        "style": {
          "selection-box-color": "#AAD8FF",
          "selection-box-border-color": "#8BB0D0",
          "selection-box-opacity": "0.5"
        }
      }, {
        "selector": "node",
        "style": {
          "width": "mapData(score, 0, 0.1, 15, 40)",
          "height": "mapData(score, 0, 0.1, 15, 40)",
          "content": "data(name)",
          "font-size": "5px",
          "text-valign": "center",
          "text-halign": "center",
          "text-outline-width": "1px",
          "color": "#fff",
          "overlay-padding": "6px",
          "z-index": "10"
        }
      }, {
        "selector": "node[?attr]",
        "style": {
          "shape": "rectangle",
          "background-color": "#aaa",
          "text-outline-color": "#aaa",
          "width": "16px",
          "height": "16px",
          "font-size": "6px",
          "z-index": "1"
        }
      }, {
        "selector": "node[?query]",
        "style": {
          "background-clip": "none",
          "background-fit": "contain"
        }
      }, {
        "selector": "node:selected",
        "style": {
          "border-width": "6px",
          "border-color": "#AAD8FF",
          "border-opacity": "0.5",
          "background-color": "#77828C",
          "text-outline-color": "#77828C"
        }
      }, {
        "selector": "edge",
        "style": {
          "curve-style": "haystack",
          "haystack-radius": "0.5",
          "opacity": "0.6",
          "line-color": "#bbb",
          "overlay-padding": "3px",
          "width": 0.6
        }
      }, {
        "selector": "node.unhighlighted",
        "style": {
          "opacity": "0.2"
        }
      }, {
        "selector": "edge.unhighlighted",
        "style": {
          "opacity": "0.05"
        }
      }, {
        "selector": ".highlighted",
        "style": {
          "z-index": "999999"
        }
      }, {
        "selector": "node.highlighted",
        "style": {
          "border-width": "6px",
          "border-color": "#AAD8FF",
          "border-opacity": "0.5",
          "background-color": "#394855",
          "text-outline-color": "#394855"
        }
      }],
      elements: data
    });
  })
</script>

<!-- npm install --save cytoscape -->
<template>
  <div id="cy" style="width:1350px;height:1000px;"></div>
</template>

<script>
import cytoscape from 'cytoscape'
export default {
  name: 'example',
  components: {},
  data () {
    return {
      plotData: [
      { "data": { "id": "Ghi_A05G05421", "name": "Ghi_A05G05421", "score": 0.1 }, "style": { "background-color": "#D53A35" } },
      { "data": { "id": "Ghi_A11G18786", "name": "Ghi_A11G18786", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_A13G11196", "name": "Ghi_A13G11196", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D03G07836", "name": "Ghi_D03G07836", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D05G15276", "name": "Ghi_D05G15276", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D11G03886", "name": "Ghi_D11G03886", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "id": "Ghi_D13G10121", "name": "Ghi_D13G10121", "score": 0 }, "style": { "background-color": "#2F4554" } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_A11G18786", "weight": 0.9422 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_A13G11196", "weight": 0.9422 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D03G07836", "weight": 0.9409 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D05G15276", "weight": 0.9449 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D11G03886", "weight": 0.9477 } },
      { "data": { "source": "Ghi_A05G05421", "target": "Ghi_D13G10121", "weight": 0.9482 } },
      { "data": { "source": "Ghi_A11G18786", "target": "Ghi_A13G11196", "weight": 0.9638 } },
      { "data": { "source": "Ghi_A11G18786", "target": "Ghi_D13G10121", "weight": 0.9623 } },
      { "data": { "source": "Ghi_A13G11196", "target": "Ghi_D05G15276", "weight": 0.9558 } },
      { "data": { "source": "Ghi_A13G11196", "target": "Ghi_D13G10121", "weight": 0.9871 } },
      { "data": { "source": "Ghi_D05G15276", "target": "Ghi_D11G03886", "weight": 0.9537 } },
      { "data": { "source": "Ghi_D05G15276", "target": "Ghi_D13G10121", "weight": 0.9729 } }
    ]
    }
  },
  mounted () {
    this.$nextTick(function () {
      this.draw()
    })
  },
  methods: {
    draw () {
      var cy = cytoscape({
        container: document.getElementById('cy'),
        layout: {
          name: 'cose',
          idealEdgeLength: 100,
          nodeOverlap: 20,
          refresh: 20,
          fit: true,
          padding: 30,
          randomize: false,
          componentSpacing: 100,
          nodeRepulsion: 400000,
          edgeElasticity: 100,
          nestingFactor: 5,
          gravity: 80,
          numIter: 1000,
          initialTemp: 200,
          coolingFactor: 0.95,
          minTemp: 1.0
        },
        style: [
          {
            selector: 'core',
            style: {
              'selection-box-color': '#AAD8FF',
              'selection-box-border-color': '#8BB0D0',
              'selection-box-opacity': '0.5'
            }
          },
          {
            selector: 'node',
            style: {
              width: 'mapData(score, 0, 0.1, 15, 40)',
              height: 'mapData(score, 0, 0.1, 15, 40)',
              content: 'data(name)',
              'font-size': '5px',
              'text-valign': 'center',
              'text-halign': 'center',
              'text-outline-width': '1px',
              color: '#fff',
              'overlay-padding': '6px',
              'z-index': '10'
            }
          },
          {
            selector: 'node[?attr]',
            style: {
              shape: 'rectangle',
              'background-color': '#aaa',
              'text-outline-color': '#aaa',
              width: '16px',
              height: '16px',
              'font-size': '6px',
              'z-index': '1'
            }
          },
          {
            selector: 'node[?query]',
            style: {
              'background-clip': 'none',
              'background-fit': 'contain'
            }
          },
          {
            selector: 'node:selected',
            style: {
              'border-width': '6px',
              'border-color': '#AAD8FF',
              'border-opacity': '0.5',
              'background-color': '#77828C',
              'text-outline-color': '#77828C'
            }
          },
          {
            selector: 'edge',
            style: {
              'curve-style': 'haystack',
              'haystack-radius': '0.5',
              opacity: '0.6',
              'line-color': '#bbb',
              'overlay-padding': '3px',
              width: 0.6
            }
          },
          {
            selector: 'node.unhighlighted',
            style: {
              opacity: '0.2'
            }
          },
          {
            selector: 'edge.unhighlighted',
            style: {
              opacity: '0.05'
            }
          },
          {
            selector: '.highlighted',
            style: {
              'z-index': '999999'
            }
          },
          {
            selector: 'node.highlighted',
            style: {
              'border-width': '6px',
              'border-color': '#AAD8FF',
              'border-opacity': '0.5',
              'background-color': '#394855',
              'text-outline-color': '#394855'
            }
          }
        ],
        elements: this.plotData
      })
      cy.minZoom(0.5)
      cy.maxZoom(3)
      cy.viewport({
        zoom: 1,
        pan: { x: 200, y: 200 }
      })
    }
  }
}
</script>
