amCharts(地图)

amCharts介绍#

amCharts与Echarts类似，也可以绘制各种基本图形。这里主要使用其中的amCharts Maps绘制地图。

带饼图的世界地图#

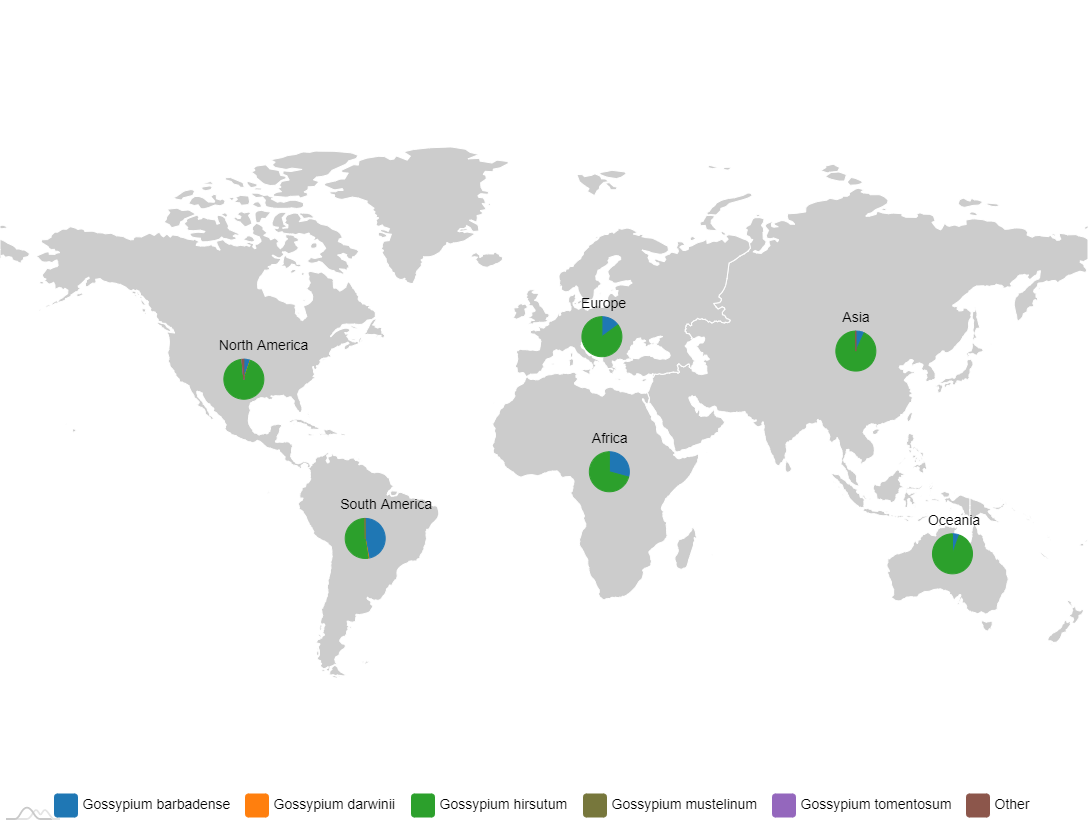

带饼图的世界地图

<script type="text/javascript" charset="utf8" src="http://code.jquery.com/jquery-1.10.2.min.js"></script>
<script src="https://cdn.amcharts.com/lib/4/core.js"></script>
<script src="https://cdn.amcharts.com/lib/4/charts.js"></script>
<script src="https://cdn.amcharts.com/lib/4/maps.js"></script>
<script src="https://cdn.amcharts.com/lib/4/geodata/continentsLow.js"></script>
<!-- 可挑选主题颜色，也可以直接修改js文件中的颜色 -->
<script src="https://cdn.amcharts.com/lib/4/themes/spiritedaway.js"></script>
<script src="https://cdn.amcharts.com/lib/4/themes/animated.js"></script>

<div id="chartdiv" style="width: 1088px;height:825px;"></div>

<script>
$(document).ready(function() {
  //准备所需数据
  var as = [
    {
      category: 'Gossypium barbadense',
      value: 187
    },
    {
      category: 'Gossypium darwinii',
      value: 0
    },
    {
      category: 'Gossypium hirsutum',
      value: 2531
    },
    {
      category: 'Gossypium mustelinum',
      value: 0
    },
    {
      category: 'Gossypium tomentosum',
      value: 0
    },
    {
      category: 'Other',
      value: 5
    }
  ]
  var eu = [
    {
      category: 'Gossypium barbadense',
      value: 21
    },
    {
      category: 'Gossypium darwinii',
      value: 0
    },
    {
      category: 'Gossypium hirsutum',
      value: 120
    },
    {
      category: 'Gossypium mustelinum',
      value: 0
    },
    {
      category: 'Gossypium tomentosum',
      value: 0
    },
    {
      category: 'Other',
      value: 0
    }
  ]
  var no = [
    {
      category: 'Gossypium barbadense',
      value: 2
    },
    {
      category: 'Gossypium darwinii',
      value: 0
    },
    {
      category: 'Gossypium hirsutum',
      value: 34
    },
    {
      category: 'Gossypium mustelinum',
      value: 0
    },
    {
      category: 'Gossypium tomentosum',
      value: 0
    },
    {
      category: 'Other',
      value: 0
    }
  ]
  var so = [
    {
      category: 'Gossypium barbadense',
      value: 38
    },
    {
      category: 'Gossypium darwinii',
      value: 1
    },
    {
      category: 'Gossypium hirsutum',
      value: 675
    },
    {
      category: 'Gossypium mustelinum',
      value: 1
    },
    {
      category: 'Gossypium tomentosum',
      value: 1
    },
    {
      category: 'Other',
      value: 10
    }
  ]
  var af = [
    {
      category: 'Gossypium barbadense',
      value: 96
    },
    {
      category: 'Gossypium darwinii',
      value: 1
    },
    {
      category: 'Gossypium hirsutum',
      value: 106
    },
    {
      category: 'Gossypium mustelinum',
      value: 1
    },
    {
      category: 'Gossypium tomentosum',
      value: 0
    },
    {
      category: 'Other',
      value: 0
    }
  ]
  var oc = [
    {
      category: 'Gossypium barbadense',
      value: 24
    },
    {
      category: 'Gossypium darwinii',
      value: 0
    },
    {
      category: 'Gossypium hirsutum',
      value: 58
    },
    {
      category: 'Gossypium mustelinum',
      value: 0
    },
    {
      category: 'Gossypium tomentosum',
      value: 0
    },
    {
      category: 'Other',
      value: 0
    }
  ]
  draw(as, eu, so, no, af, oc);
});
function draw(as, eu, so, no, af, oc) {
  am4core.ready(function() {
    // Themes begin, 根据引入的主题js文件改变主题颜色
    am4core.useTheme(am4themes_spiritedaway);
    //am4core.useTheme(am4themes_kelly);
    // Themes end

    // Create map instance
    var chart = am4core.create("chartdiv", am4maps.MapChart);

    // Set map definition
    chart.geodata = am4geodata_continentsLow;

    // Set projection
    chart.projection = new am4maps.projections.Miller();
    chart.exporting.menu = new am4core.ExportMenu();
    chart.exporting.menu.items = [{
      "label": "...",
      "menu": [
        { "type": "png", "label": "PNG" },
      ]
    }];

    chart.exporting.timeoutDelay = 5000;
    // Create map polygon series
    var polygonSeries = chart.series.push(new am4maps.MapPolygonSeries());
    polygonSeries.exclude = ["antarctica"];
    polygonSeries.mapPolygons.template.fill = '#CCCCCC';
    polygonSeries.mapPolygons.template.nonScalingStroke = false;
    polygonSeries.useGeodata = true;

    // Create an image series that will hold pie charts
    var pieSeries = chart.series.push(new am4maps.MapImageSeries());
    var pieTemplate = pieSeries.mapImages.template;
    pieTemplate.propertyFields.latitude = "latitude";
    pieTemplate.propertyFields.longitude = "longitude";

    var pieChartTemplate = pieTemplate.createChild(am4charts.PieChart);
    pieChartTemplate.adapter.add("data", function(data, target) {
      if (target.dataItem) {
        return target.dataItem.dataContext.pieData;
      }
      else {
        return [];
      }
    });
    pieChartTemplate.propertyFields.width = "width";
    pieChartTemplate.propertyFields.height = "height";
    pieChartTemplate.horizontalCenter = "middle";
    pieChartTemplate.verticalCenter = "middle";

    var pieTitle = pieChartTemplate.titles.create();
    pieTitle.text = "{title}";

    var pieSeriesTemplate = pieChartTemplate.series.push(new am4charts.PieSeries);
    pieSeriesTemplate.dataFields.category = "category";
    pieSeriesTemplate.dataFields.value = "value";
    pieSeriesTemplate.labels.template.disabled = true;
    pieSeriesTemplate.ticks.template.disabled = true;

    pieSeries.data = [{
      "title": "North America",
      "latitude": 39.563353,
      "longitude": -99.316406,
      "width": 50,
      "height": 50,
      "pieData": no
    }, {
      "title": "South America",
      "latitude": -10.896104,
      "longitude": -59.160156,
      "width": 50,
      "height": 50,
      "pieData": so
    }, {
      "title": "Oceania",
      "latitude": -15.896104,
      "longitude": 135.160156,
      "width": 50,
      "height": 50,
      "pieData": oc
    }, {
      "title": "Europe",
      "latitude": 50.896104,
      "longitude": 19.160156,
      "width": 50,
      "height": 50,
      "pieData": eu
    }, {
      "title": "Asia",
      "latitude": 47.212106,
      "longitude": 103.183594,
      "width": 50,
      "height": 50,
      "pieData": as
    }, {
      "title": "Africa",
      "latitude": 11.081385,
      "longitude": 21.621094,
      "width": 50,
      "height": 50,
      "pieData": af
    }];
    var legendDataMap = {};
    var legendData = [];
    var count = 0;

    // legend for pie slices
    pieSeriesTemplate.events.on("datavalidated", function(event) {
      event.target.dataItems.each(function(dataItem) {
        if (!legendDataMap[dataItem.category]) {
          legendDataMap[dataItem.category] = dataItem;
          legendData.push(dataItem);
        }
      })
      count++
      if (count == pieSeriesTemplate.clones.length) {
        createLegend(legendData);
        count = 0;
        legendDataMap = {};
        legendData = [];
      }
    })

    var legend;
    function createLegend(data) {
      if (!legend) {
        legend = chart.createChild(am4charts.Legend)
      }
      legend.valueLabels.template.disabled = true; // disabling because it would only show one legend values
      legend.data = data;
      legend.dataFields.name = "category";
      legend.valign = 'bottom';
      // make this legend to toggle all the slices
      legend.itemContainers.template.events.on("toggled", function(event) {
        let category = event.target.dataItem.dataContext.category;
        // do it for all clones
        pieSeriesTemplate.clones.each(function(pieSeries) {
          if (pieSeries != event.target.dataItem.dataContext.component) {
            pieSeries.dataItems.each(function(dataItem) {
              if (dataItem.category == category) {
                if (event.target.isActive) {
                  dataItem.hide();
                }
                else {
                  dataItem.show();
                }
              }
            })
          }
        })
      })
    }
  }); // end am4core.ready()
}
</script>

<!-- npm install @amcharts/amcharts4 -->
<!-- npm install @amcharts/amcharts4-geodata -->
<template>
  <div>
    <div :ref="chartID" :id="chartID" style="width: 100%;height: 600px;"></div>
  </div>
</template>
<script>
  import * as am4core from '@amcharts/amcharts4/core'
  import * as am4charts from '@amcharts/amcharts4/charts'
  import * as am4maps from '@amcharts/amcharts4/maps'
  import am4geodata_continentsLow from '@amcharts/amcharts4-geodata/continentsLow'
  import am4themes_animated from '@amcharts/amcharts4/themes/animated'

  am4core.useTheme(am4themes_animated)

  export default {
    name: 'geomap',
    data() {
      return {
        mapData: {
          North_America: [
            { category: 'Gossypium hirsutum', value: 675 },
            { category: 'Gossypium barbadense', value: 38 },
            { category: 'Gossypium tomentosum', value: 1 },
            { category: 'Gossypium darwinii', value: 1 },
            { category: 'Gossypium mustelinum', value: 1 },
            { category: 'Other', value: 10 }
          ],
          South_America: [
            { category: 'Gossypium hirsutum', value: 106 },
            { category: 'Gossypium barbadense', value: 96 },
            { category: 'Gossypium tomentosum', value: 0 },
            { category: 'Gossypium darwinii', value: 1 },
            { category: 'Gossypium mustelinum', value: 1 },
            { category: 'Other', value: 0 }
          ],
          Oceania: [
            { category: 'Gossypium hirsutum', value: 34 },
            { category: 'Gossypium barbadense', value: 2 },
            { category: 'Gossypium tomentosum', value: 0 },
            { category: 'Gossypium darwinii', value: 0 },
            { category: 'Gossypium mustelinum', value: 0 },
            { category: 'Other', value: 0 }
          ],
          Europe: [
            { category: 'Gossypium hirsutum', value: 120 },
            { category: 'Gossypium barbadense', value: 21 },
            { category: 'Gossypium tomentosum', value: 0 },
            { category: 'Gossypium darwinii', value: 0 },
            { category: 'Gossypium mustelinum', value: 0 },
            { category: 'Other', value: 0 }
          ],
          Asia: [
            { category: 'Gossypium hirsutum', value: 2531 },
            { category: 'Gossypium barbadense', value: 187 },
            { category: 'Gossypium tomentosum', value: 0 },
            { category: 'Gossypium darwinii', value: 0 },
            { category: 'Gossypium mustelinum', value: 0 },
            { category: 'Other', value: 5 }
          ],
          Africa: [
            { category: 'Gossypium hirsutum', value: 58 },
            { category: 'Gossypium barbadense', value: 24 },
            { category: 'Gossypium tomentosum', value: 0 },
            { category: 'Gossypium darwinii', value: 0 },
            { category: 'Gossypium mustelinum', value: 0 },
            { category: 'Other', value: 0 }
          ]
        }
      }
    },
    mounted() {
      let chart = am4core.create('chartdiv', am4maps.MapChart)

      // Set map definition
      chart.geodata = am4geodata_continentsLow

      // Set projection
      chart.projection = new am4maps.projections.Miller()
      chart.exporting.menu = new am4core.ExportMenu()
      chart.exporting.menu.items = [
        {
          label: '...',
          menu: [{ type: 'png', label: 'PNG' }]
        }
      ]

      // Create map polygon series
      let polygonSeries = chart.series.push(new am4maps.MapPolygonSeries())
      polygonSeries.exclude = ['antarctica']
      polygonSeries.mapPolygons.template.fill = '#CCCCCC'
      polygonSeries.mapPolygons.template.nonScalingStroke = false
      polygonSeries.useGeodata = true

      // Create an image series that will hold pie charts
      let pieSeries = chart.series.push(new am4maps.MapImageSeries())
      let pieTemplate = pieSeries.mapImages.template
      pieTemplate.propertyFields.latitude = 'latitude'
      pieTemplate.propertyFields.longitude = 'longitude'

      let pieChartTemplate = pieTemplate.createChild(am4charts.PieChart)
      pieChartTemplate.adapter.add('data', function(data, target) {
        if (target.dataItem) {
          return target.dataItem.dataContext.pieData
        } else {
          return []
        }
      })
      pieChartTemplate.propertyFields.width = 'width'
      pieChartTemplate.propertyFields.height = 'height'
      pieChartTemplate.horizontalCenter = 'middle'
      pieChartTemplate.verticalCenter = 'middle'

      let pieTitle = pieChartTemplate.titles.create()
      pieTitle.text = '{title}'

      let pieSeriesTemplate = pieChartTemplate.series.push(
        new am4charts.PieSeries()
      )
      pieSeriesTemplate.dataFields.category = 'category'
      pieSeriesTemplate.dataFields.value = 'value'
      pieSeriesTemplate.labels.template.disabled = true
      pieSeriesTemplate.ticks.template.disabled = true

      pieSeries.data = [
        {
          title: 'North America',
          latitude: 39.563353,
          longitude: -99.316406,
          width: 50,
          height: 50,
          pieData: this.mapData.North_America
        },
        {
          title: 'South America',
          latitude: -10.896104,
          longitude: -59.160156,
          width: 50,
          height: 50,
          pieData: this.mapData.South_America
        },
        {
          title: 'Oceania',
          latitude: -15.896104,
          longitude: 135.160156,
          width: 50,
          height: 50,
          pieData: this.mapData.Oceania
        },
        {
          title: 'Europe',
          latitude: 50.896104,
          longitude: 19.160156,
          width: 50,
          height: 50,
          pieData: this.mapData.Europe
        },
        {
          title: 'Asia',
          latitude: 47.212106,
          longitude: 103.183594,
          width: 50,
          height: 50,
          pieData: this.mapData.Asia
        },
        {
          title: 'Africa',
          latitude: 11.081385,
          longitude: 21.621094,
          width: 50,
          height: 50,
          pieData: this.mapData.Africa
        }
      ]
      var legendDataMap = {}
      var legendData = []
      var count = 0

      // legend for pie slices
      pieSeriesTemplate.events.on('datavalidated', function(event) {
        event.target.dataItems.each(function(dataItem) {
          if (!legendDataMap[dataItem.category]) {
            legendDataMap[dataItem.category] = dataItem
            legendData.push(dataItem)
          }
        })
        count++
        if (count == pieSeriesTemplate.clones.length) {
          createLegend(legendData)
          count = 0
          legendDataMap = {}
          legendData = []
        }
      })

      var legend
      function createLegend(data) {
        if (!legend) {
          legend = chart.createChild(am4charts.Legend)
        }

        legend.valueLabels.template.disabled = true // disabling because it would only show one legend values
        legend.data = data
        legend.dataFields.name = 'category'
        legend.valign = 'bottom'
        // make this legend to toggle all the slices
        legend.itemContainers.template.events.on('toggled', function(event) {
          let category = event.target.dataItem.dataContext.category
          // do it for all clones
          pieSeriesTemplate.clones.each(function(pieSeries) {
            if (pieSeries != event.target.dataItem.dataContext.component) {
              pieSeries.dataItems.each(function(dataItem) {
                if (dataItem.category == category) {
                  if (event.target.isActive) {
                    dataItem.hide()
                  } else {
                    dataItem.show()
                  }
                }
              })
            }
          })
        })
      }
    },

    beforeDestroy() {
      if (this.chart) {
        this.chart.dispose()
      }
    }
  }
  </script>
Back to top
